Barcode Printer
DT-360

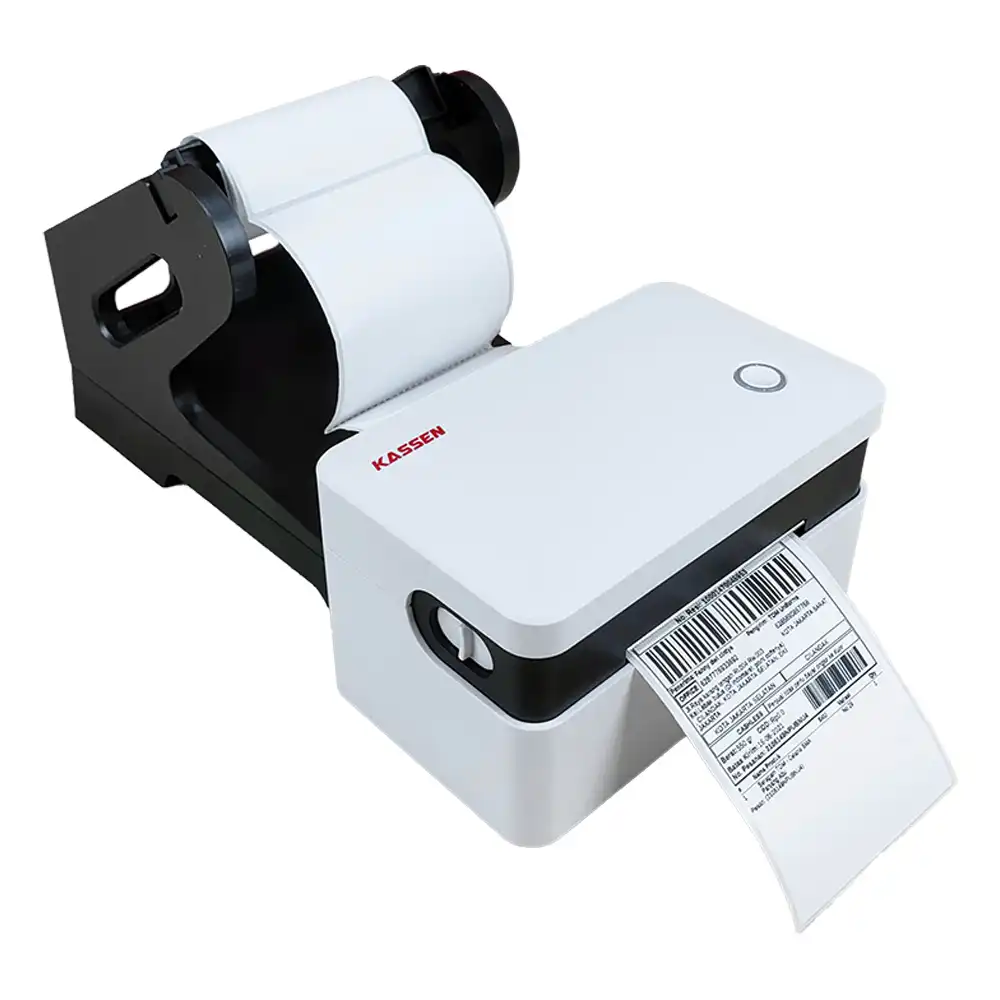

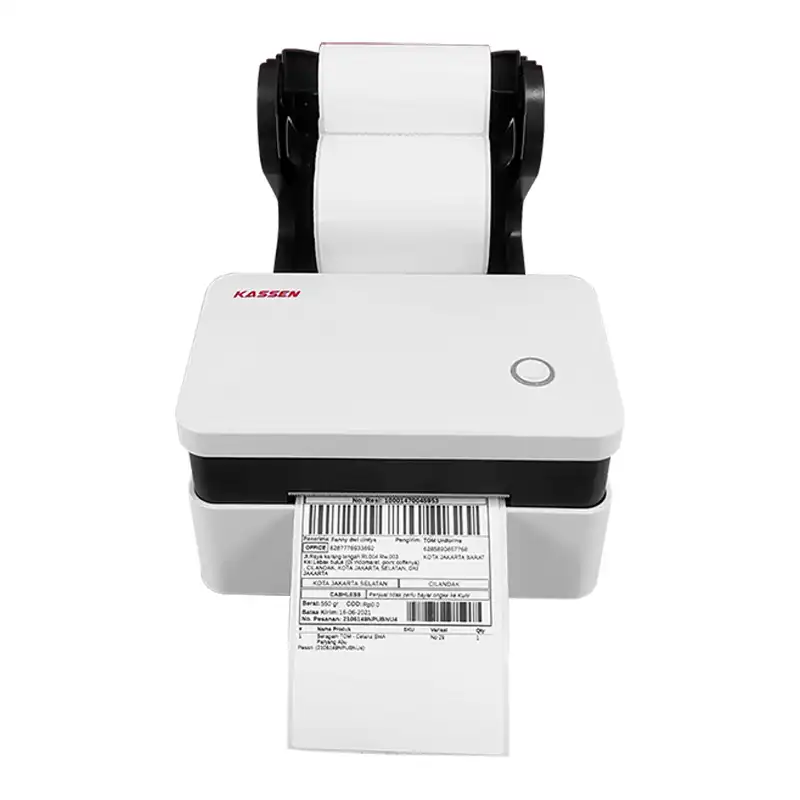

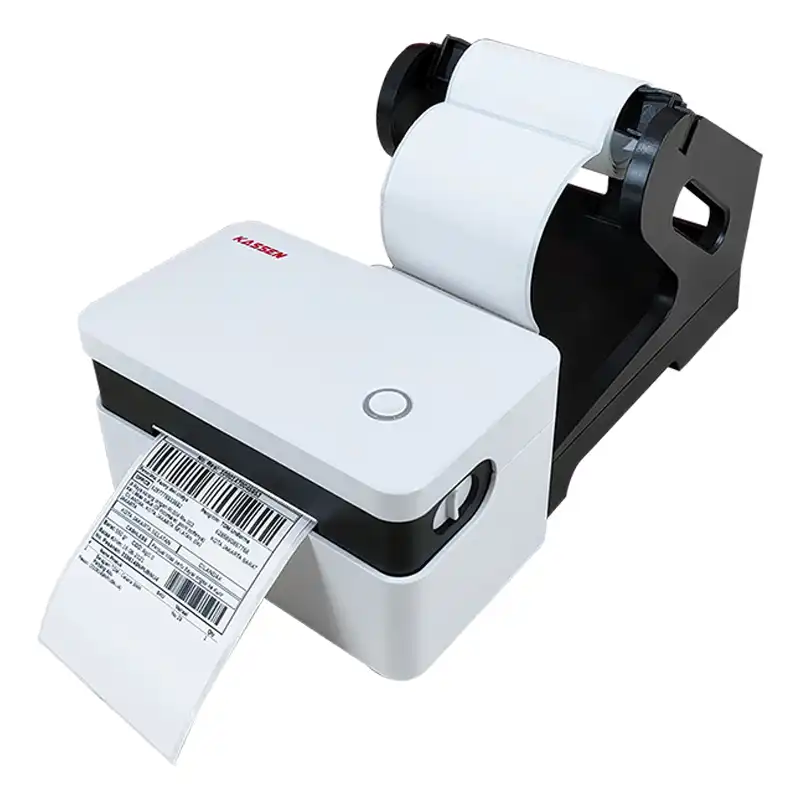

The Kassen DT-360 is a direct thermal barcode printer with a Bluetooth connection that can fill 80mm thermal labels. This printer is also very easy to place anywhere because it has a mini size, besides that it can also be operated from your Android or laptop. It is suitable for use in shipping / expedition, retail, hospital, F&B, e-commerce, etc.
Main Features
- 80mm thermal label paper, easy paper loading
- No paper warehouse design, no ribbon.

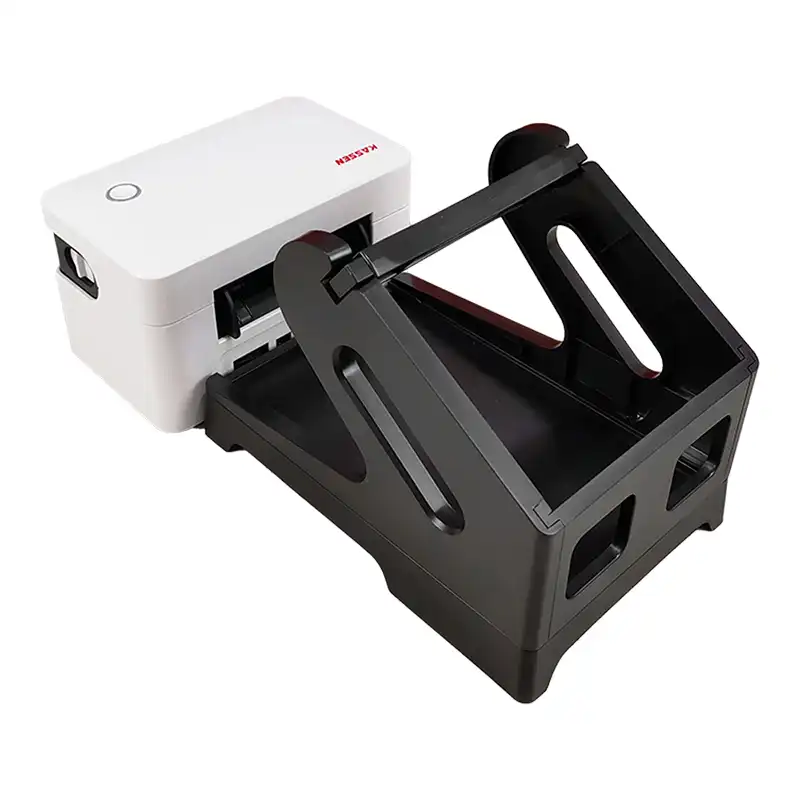

- External bracket paper holder , for printing two dierent types of labels. Dual-wall frame, robust and sturdy structure.
- TPH special designed overcoat, endure large printing volume.
- CPCL and TSPL programming language.
- QR Code, PDF417 supported
Try On The Touch
Spesifications
Interfaces | USB / Bluetooth |
Print Comand | CPCL / TSPL command |
Print Method | Direct Line Thermal |
Print Speed | 127mm/s |
Resolution | 203DPI (8dot/mm) |
Inner Code | Supported 11 types font size |
Print parameters | Support to download the Logo trademark |
Media Sensor | Dual-media sensors: transmissive and reflective |
One-dimensional code | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR /CODE93 / CODE128 |
Two-dimensional code | QR Code, PDF417 |
Printer Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS |
Thermal Paper Types | Continuous paper, label paper, folded paper, tag paper |
Effective Print Width | 80mm |
Available Max Paper Width | 84 ± 0.5mm |
Paper Thickness | 0.06-0.30 mm |
Charging Method | External charger DC 24V/2A |
Print Head | AOI |
Print Reliability | 50km |
Operating Temperature | 0˚C- 50˚C (no condensation allowed) |
Working Humidity | 20% ~ 85% RH (no condensation allowed) |
Storage Temperature | -20˚C ~ 60˚C (no condensation allowed) |
Storage Humidity | 5% ~ 95% RH (no condensation allowed) |
Mechanical Noise | Less than 60dB (A weighted RMS) |
Printer Dimension | 165*100*98mm |
Unit Weight | 0.9kgs(with accessories) |
Pieces Per CTN | 12 Pieces |
CTN Dimension | 55*41*28cm |
Gross Weight | 14.3kgs |
