Barcode Printer

DT 369

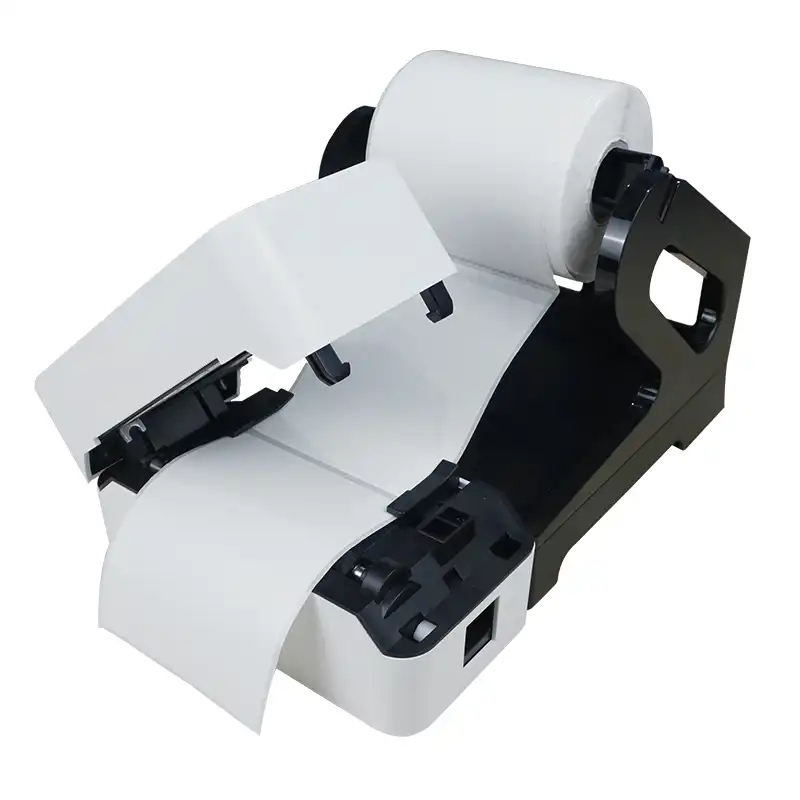

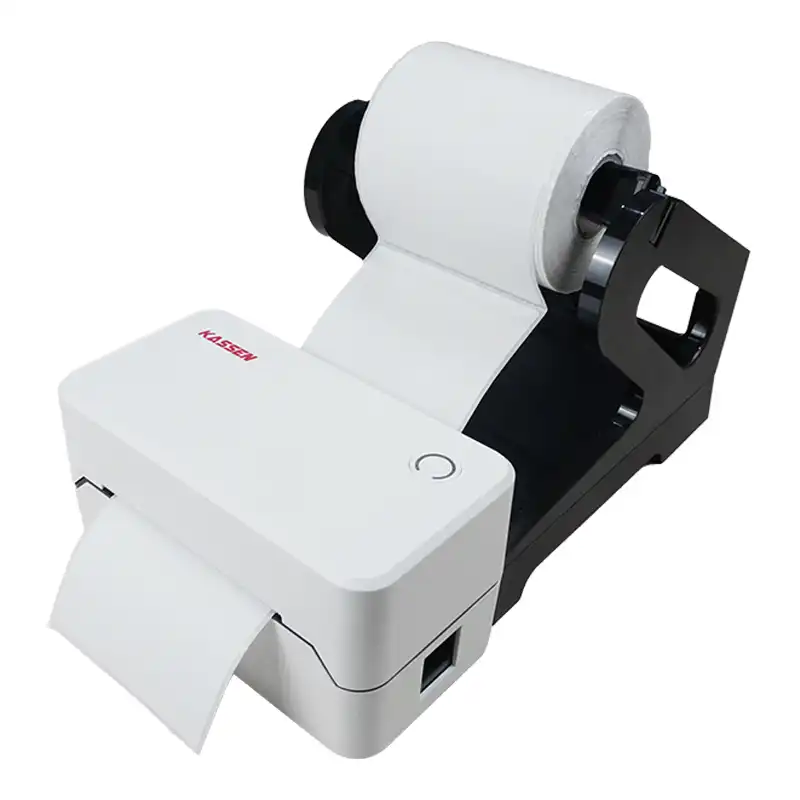

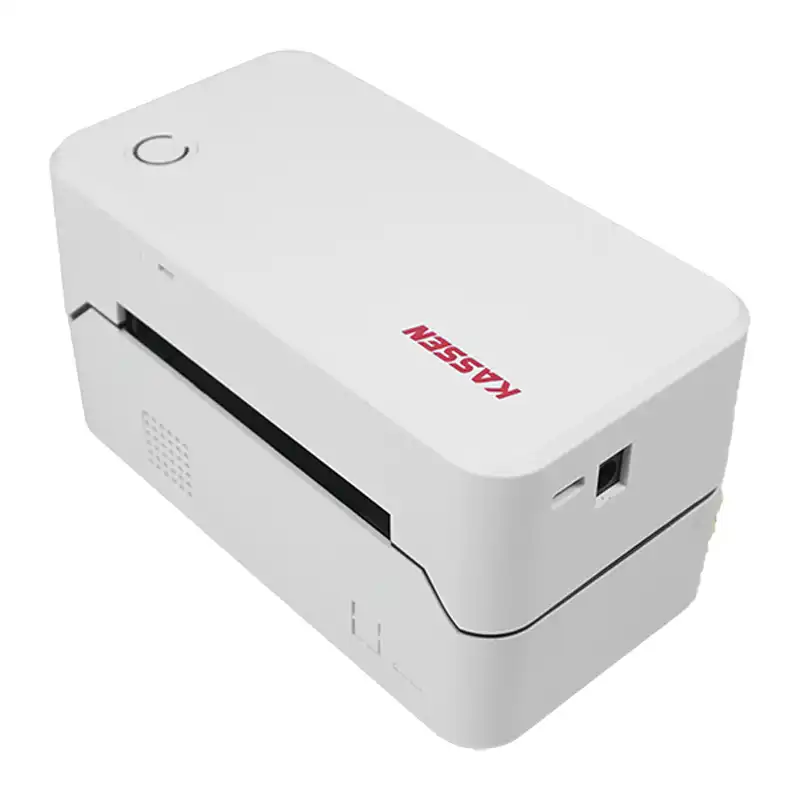

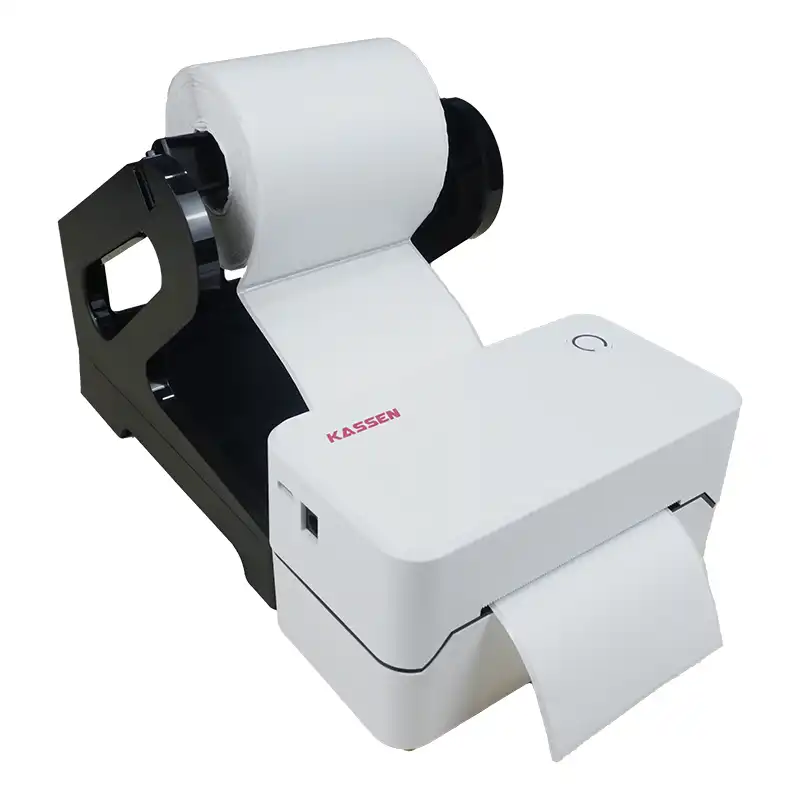

A direct thermal / inkless label printer that supports Bluetooth and USB connections so that it can be operated directly from your cellphone or laptop / PC. Maximum label width is 115mm with high print speed. Suitable for printing shipping receipt labels, drink cup labels, drug prescription labels, or others.

Main Features

  • Direct thermal / inkless printing method
  • Support Android, iOS, Windows
  • Support bluetooth & USB connection
  • Print speed up to 115mm/s
  • Smaller printer size
  • Can accommodate labels with larger diameters
  • More modern & futuristic design
Brochure
Driver For Windows
Manual Book
Certificate
Try On The Touch

Spesifications

InterfacesUSB, Bluetooth
Print ComandCPCL / TSPL command
Print MethodDirect Line Thermal
Print Speed115mm/s
Resolution203DPI (8dot/mm)
Inner CodeSupported 11 types font size
Print parametersSupport to download the Logo trademark
Media SensorTransmissive and Reective
One-dimensional codeUPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR /CODE93 / CODE128
Two-dimensional codeQR Code, PDF417
Printer DriverWin2003 / WinXP / Win7 / WIN8 / WIN10
Thermal Paper TypesContinuous paper, label paper, folded paper, tag paper
Effective Print Width76mm/78mm
Available Max Paper Width84 ± 0.5mm
Paper Thickness0.06-0.30 mm
Power SupplyInput : 100-240V~1.6A , Output : DC : 24V/2.5A
Print Reliability30km
Operating Temperature-5°C - 65°C (No condensation allowed)
Working Humidity20% ~ 85% RH (No condensation allowed)
Storage Temperature-20°C ~ 60°C (No condensation allowed)
Storage Humidity5% ~ 95% RH (no condensation allowed)
Mechanical NoiseLess than 60dB (A weighted RMS)
Printer Dimension148*79*72mm (W*D*H)
Unit Weight0.75kgs(with accessories)
