Wristband Printer
WL252

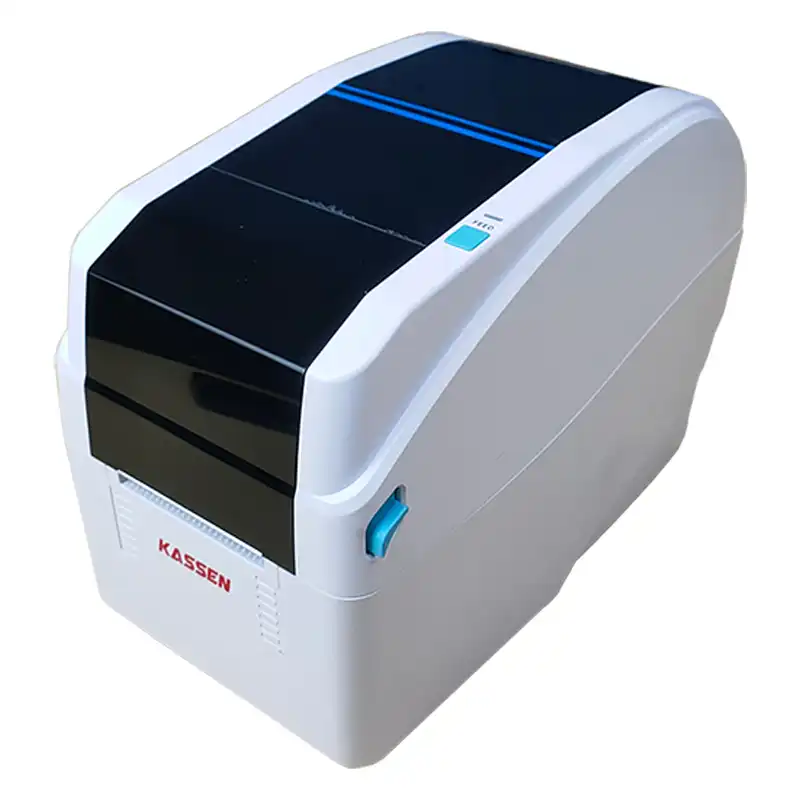

The Kassen WL252 Bracelet Printer is an advanced and versatile printing solution, designed specifically to meet your bracelet label printing needs. Has the ability to print using two different modes, namely thermal transfer and direct thermal. And equipped with a USB connection and a high print speed of up to 203mm/s.
Main Features
- Can print with 2 mode options, namely Thermal Transfer (using ribbon ink) & Direct Thermal (without ink)
- The print results are more durable and can last a long time
- Print results are sharper
- High print speed up to 203mm/s
- Supports USB connection
- Official Guarantee & 100% Original
Try On The Touch
Spesifications
| Model | WL252 |
| Resolution | 203 DPI |
| Print Method | Thermal Transfer / Direct Thermal |
| Print Speed | 203mm (8”) / s |
| Max. Print Width | 56mm (2.2”) |
| Max. Print Length | 1778mm (70”) |
| Media Type | Continuous, Gap, Black Mark, Fan-fold and Punched Hole |
| Media Width | 25.4 ~ 60mm (1.0”~2.3”) |
| Media Thickness | 0.06 ~ 0.254mm (2.36 ~ 10mil) |
| Media Core Diameter | 25.4 ~ 38mm (1” ~ 1.5”) |
| Label Length | 10 ~ 1778mm (0.39” ~ 70”) |
| Label Roll Capacity | 127mm (5”) OD (External Diameter) |
| Ribbon Capacity | Max. 110mm |
| Ribbon Width | 60mm |
| Peel off | On |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory / 8MB SDRAM / Flash memory can be expanded Max. 4GB |
| Interface | USB |
| Sensors | Gap Sensor, Cover Opening Sensor, Black Mark Sensor, Ribbon Sensor |
| Internal Fonts | 8 alpha-numeric bitmap fonts, Windows font are downloadable form software |
| 1D Barcode | Code 437 (English-US), Code 737 (Greek), Code 850 (Latin-1), Code 852 (Latin-2), Code 855 (Cyrilic), Code 857 (Turkish), Code 860 (Portuguese), Code 861 (Icelandic), Code 862 (Hebrew), Code 863 (French Canadian), Code 864 (Arabic), Code 865 (Nordic), Code 866 ((Russian), Code 869 (Greek 2), Ode 950 (Traditional Chinese), Code 936 (Simplified Chinese), Code 932 (Japanese), Code 94 (Korean), Code 1250 (Latin-2), Code 1251 (Cyrillic), Code 1252 (Latin-1), Code 1253 (Greek), Code 1254 (Turkish), Code 1255 (Hebrew), Code 1256 (Arabic), Code 1257 (Baltic), code 1258 (Vietnam), ISO-8859-1: Latin-1 (Western European), ISO-8859-2: Latin-2 (Central European), ISO-8859-3: Latin-3 (South European), ISO-8859-4: Latin-4 (North European), ISO-8859-5: Cyrillic, ISO-8859-6: Arabic, ISO-8859-7: Greek, ISO-8859-7: Hebrew, ISO-8859-9: Turkish, ISO-8859-10: Nordic, ISO-8859-15: Latin-9, UTF-8 |
| 2D Barcode | PDF-417, Maxicode, Data Matrix, QR Code, Aztec |
| Rotation | 0°, 90°, 180°, 270° |
| Emulation | TSPL, EPL, ZPL, DPL |
| Dimension | 245mm (D) x 170mm (W) x 145mm (H) |
| Weight | 1.55kg |
| Print Headlife | 30km |
| Driver | Windows / Linux / Mac |
| SDK | Windows / iOS / Android |
| Input | AC 100 - 240V, 1.5A, 50-60Hz |
| Output | DC 24V / 2.5A, 60W |
| Operation | 5~40°C (41~104°F), Humidity: 25~85% non condensing |
| Storage Environment | -40~60°C (-40~140°F), Humidity: 10~90% non-condensing |
| Factory Options | Wifi module, LAN module, Bluetooth module, Serial module |
| Dealer Options | External paper roll holder, Cutter, Peeling machine |
