Barcode Scanner

KS-601

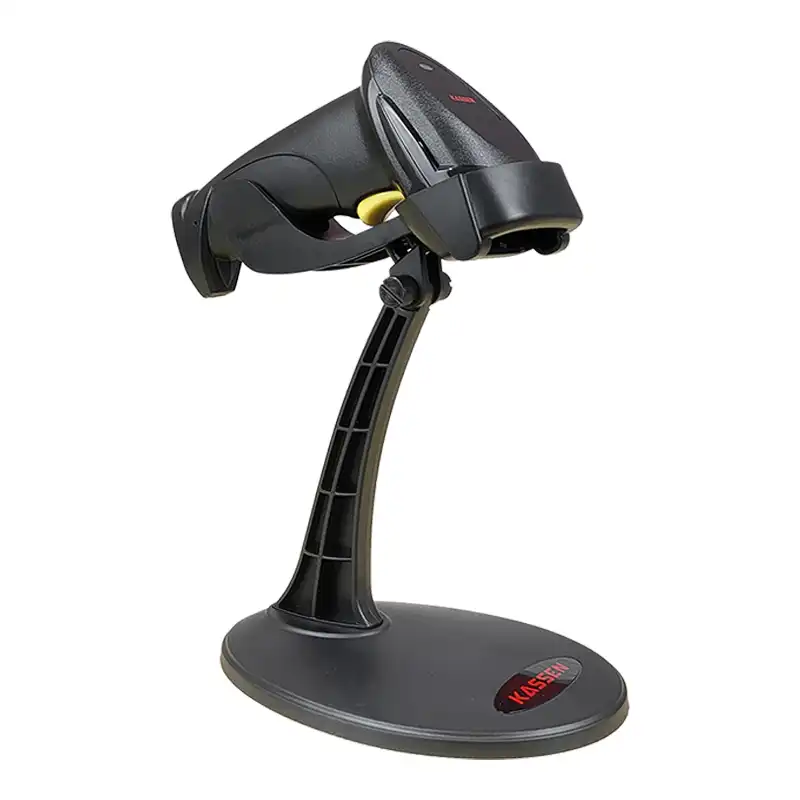

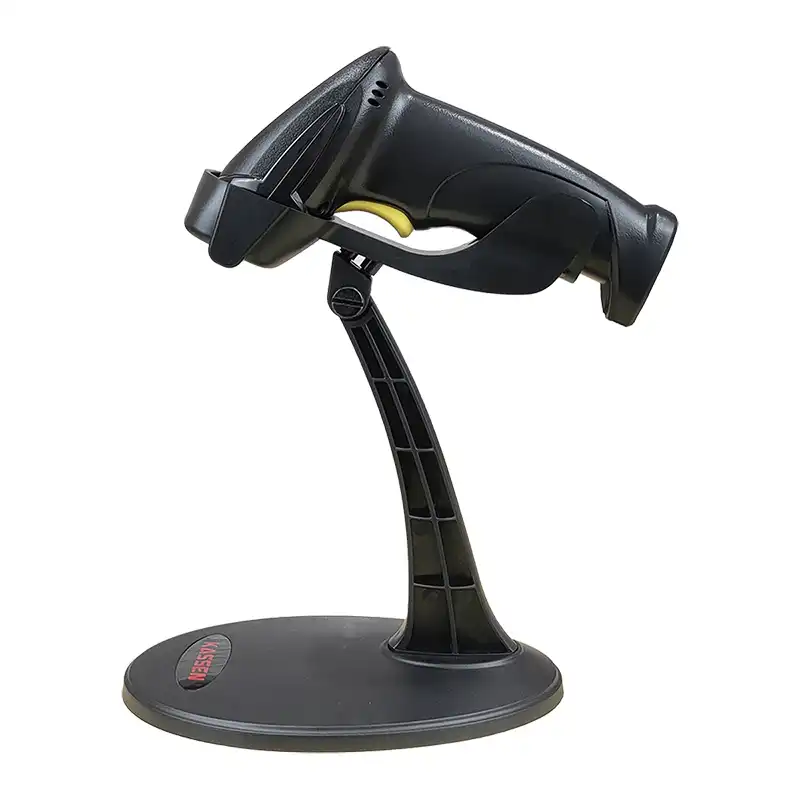

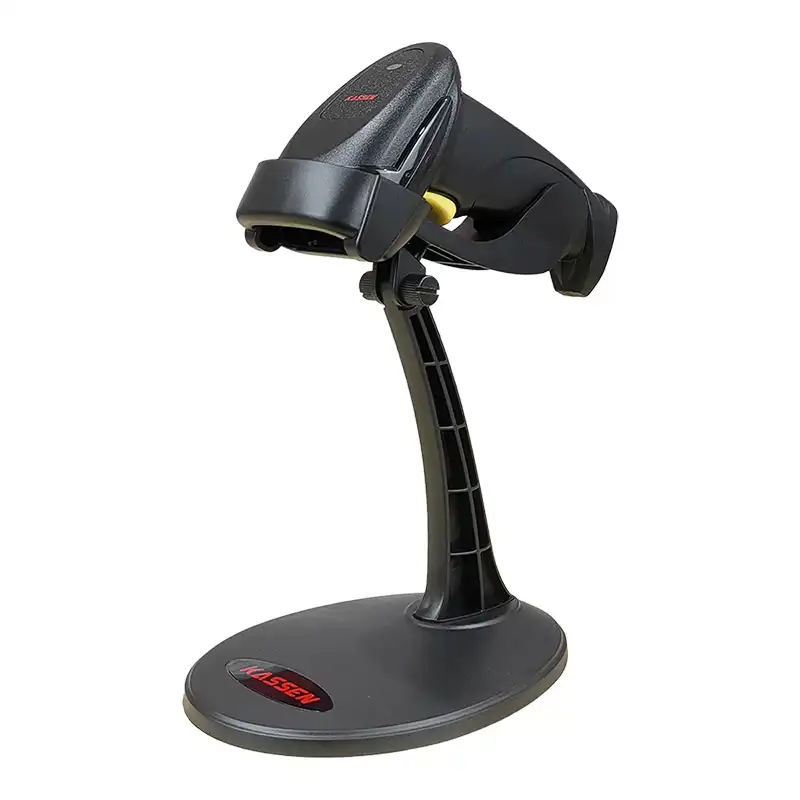

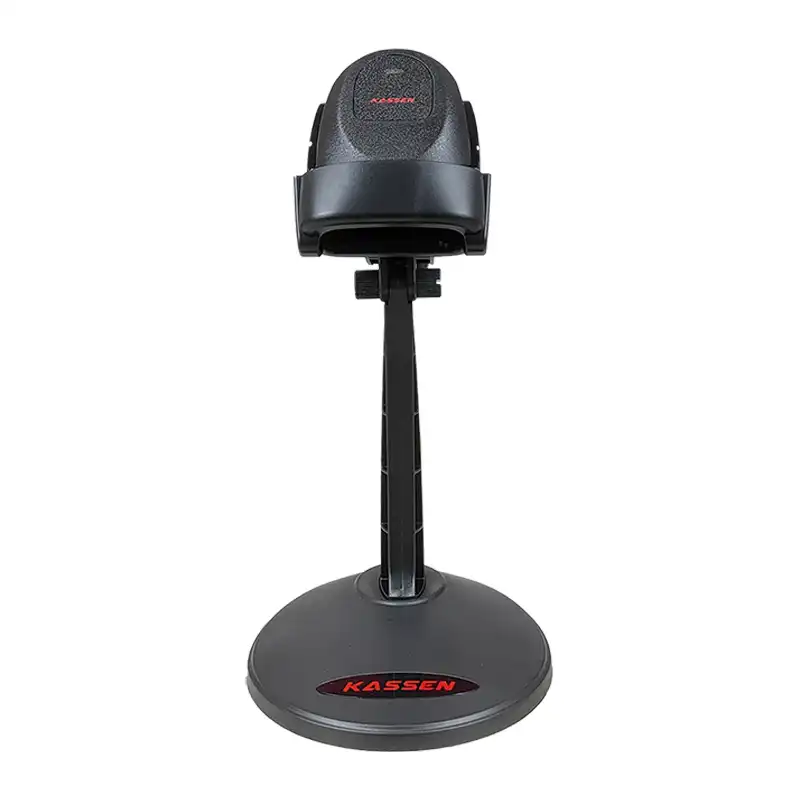

Barcode Scanner KS-601 is a barcode scanner that is capable of reading all types of 1D barcodes with high scanning speed. In addition, the KS-601 Barcode Scanner can also be operated in handheld mode or using a stand.
Main Features
  • No driver, plug and play.
  • Factory direct sale, cheap price and stable scanning.
  • Supporting the RS232,PS2 and USB interface.
  • Fast and accurate in reading 1D codes.
  • Support multiple languages; Error rate less 1/5 million.
  • Comfortable button, service life of button up to 5million times.
  • Made of durable ABS material, wear resistant and drop-proof.
  • Can be customized according to customer demand.
Try On The Touch

Spesifications

Light source650 (visible laser)
Scan modelSingle line Bi-directional
Scan speed300 scans/sec
Resolution4mil
Width of scan5-30cm
Depth of scan2-50cm
Scan anglesRoll30°, Pitch75°, Yaw65°
Decode capacityCode39,Code 39Full ASCII,Code128Full,ASCII,Codabar,Interleaved 2 of 5,Code93,MSI,Code11,ISBN,ISSN,China post code,UPC/EAN,UPC/EAN(include complement code),Code128,UCC/EAN128,etc
InterfaceRS232,PS2,USB
Print contrast30% minimum
Bit error rate1/5 million
PromptBuzzer, Indicator light
Scan modelHandheld / Continuous scanning
MaterialABS+PC
Cable standardStraight:1.8m
Power supplyDC 5V±5%
CurrentWorking: 50mA Standby: 30mA
Laser securityAccord with national level1 laser security standards
TemperatureWorking: 0℃-50℃ / 32°to 122°F Storage :0℃-50℃ / 32°to 122°F
HumidityOperating and Storage humidity 20%-85% (non-condensing)
ESD protection15KV air discharge
Anti-knock1.5m free fall on concrete surface
Anti-knock1.5m free fall on concrete surface
CertificateCE, FCC, RoHS, IP54
AppliedRetail, Warehouse, Hospitality, Ticketing
