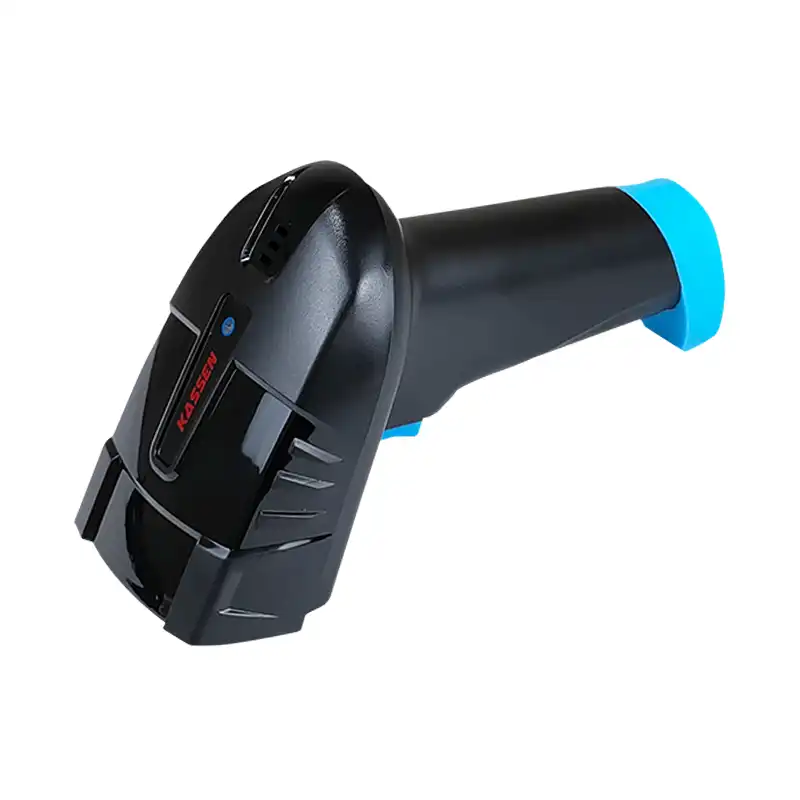

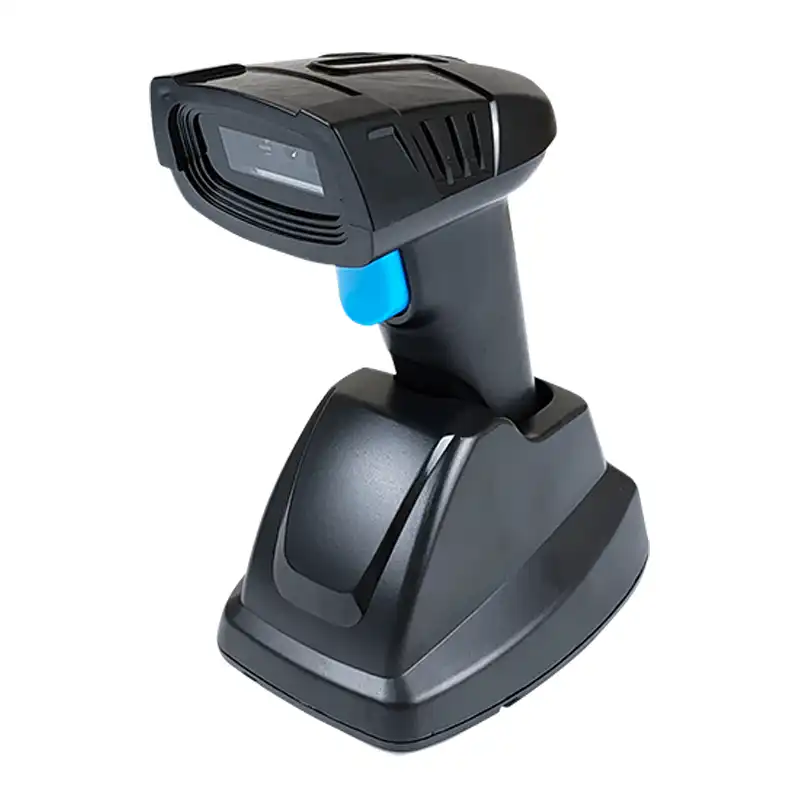

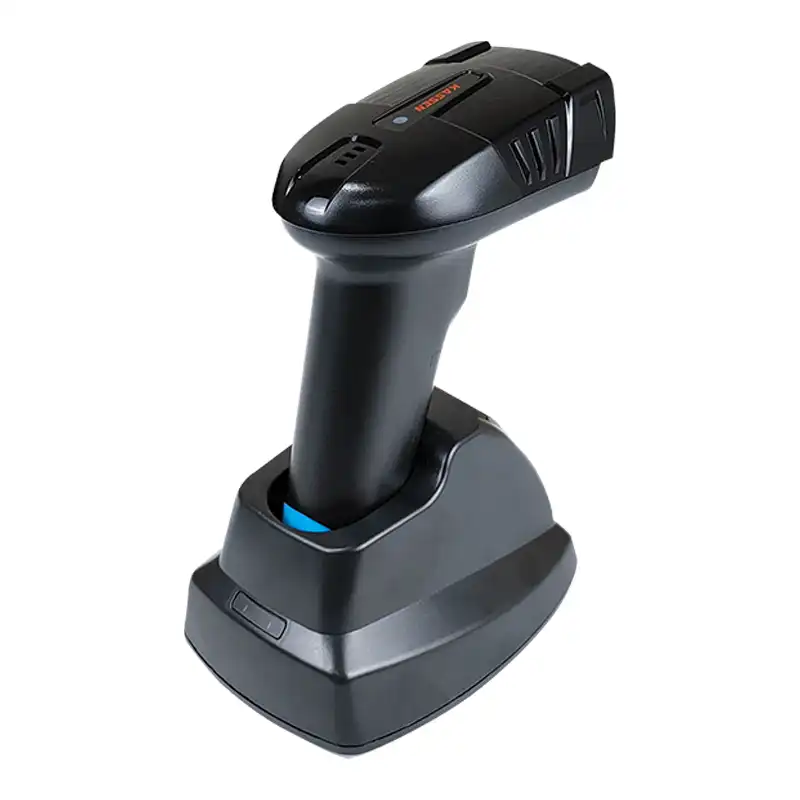

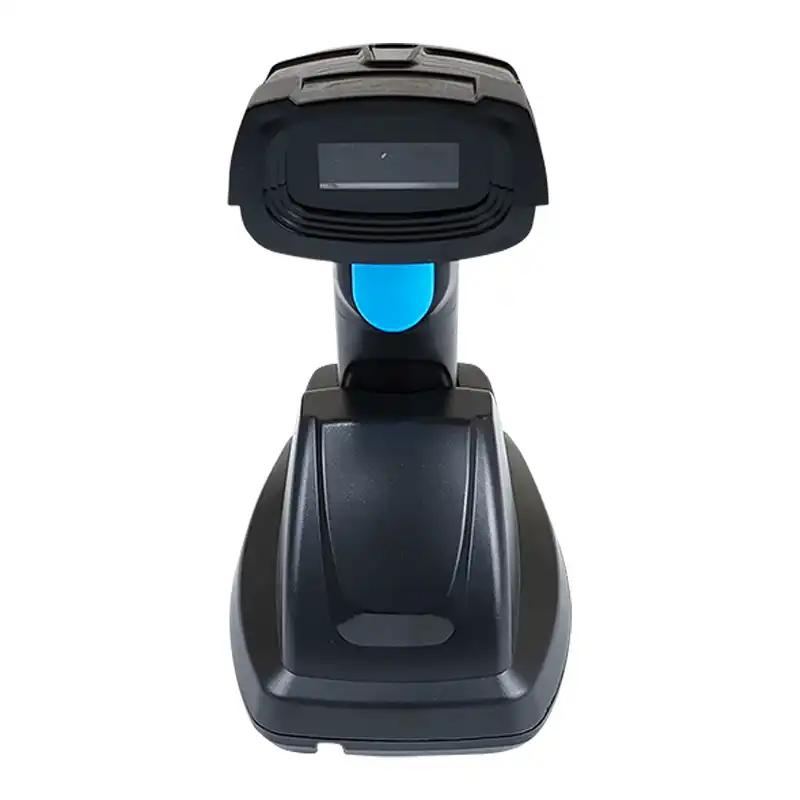

Wireless Barcode Scanner

RF-2400

The Kassen RF-2400 is a wireless barcode scanner capable of reading 1D / 2D barcodes with a large battery capacity of up to 2200 mAh. The RF-2400 scanner is also capable of scanning at a distance of 400 meters in open areas. It is suitable for Supermarket, retail, warehouse, logistic, library, medical, Etc.

Main Features

  • Can store 150,000 barcode offline
  • Support 1D/2D barcode on paper/screen
  • Built-in 2200 mAh battery, super long standby time
  • Base support data transmission and battery charging
  • Support different language for 25 countries
  • 433 Mhz wireless communication distance outdoor 400m, indoor 100m
  • Read barcode as small as 3mill
Brochure
Manual Book
Try On The Touch

Spesifications

Transmission Mode433Mhz Wireless
Distance400m
Sensor640*480 CMOS
Resolution4mil
Battery 3.7V-2200mAh
Decoding Speed500scans/sec
Button Life8000,000 times
Storage150,000 barcodes
CPUARM 32-bit Cortex
InterfaceUSB, USB-COM
Light Aimer0.06-0.30 mm
IndicationBuzzer & LED
Illumination6500K LEDs
MaterialABS+PC
250Lux Depth of Field13mil-EAN13 (50-250mm), 4mil-code39 (60-100mm), 20mil-QR (40-300mm 10mil), PDF417 (40-280mm)
Decode Capability1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128，Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5，Coda bar，MSI Plessey，RSS，Codabar，ISBN、 ISSN、GS1 DataBar(RSS14)etc.2D: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc.
Trigger ModeHandheld,Continuous,Auto-Induction
Scanning angleAngle of rotation360°，inclination± 65°，declination ± 60°
Working current3.3Vx200mA
Working time3 to 10 days
Anti inference0-100000Lux Max
CerticateCE，FCC，RoHS，IP54
Standby current18uA-5mA
Charging power5V-400mA
Printing Contract≥25%
Drop test2m
