Wireless Barcode Scanner

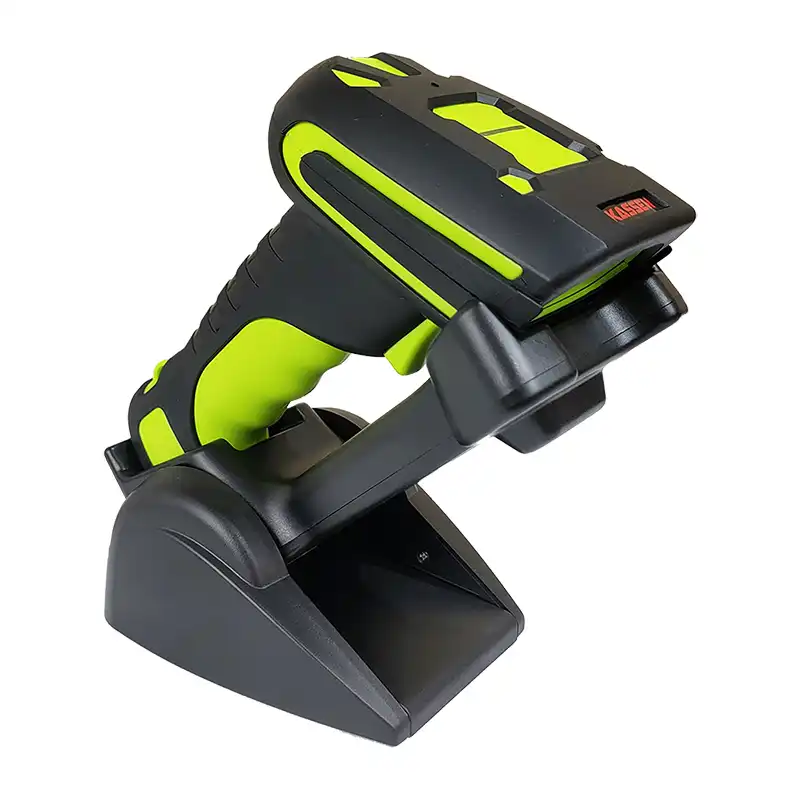

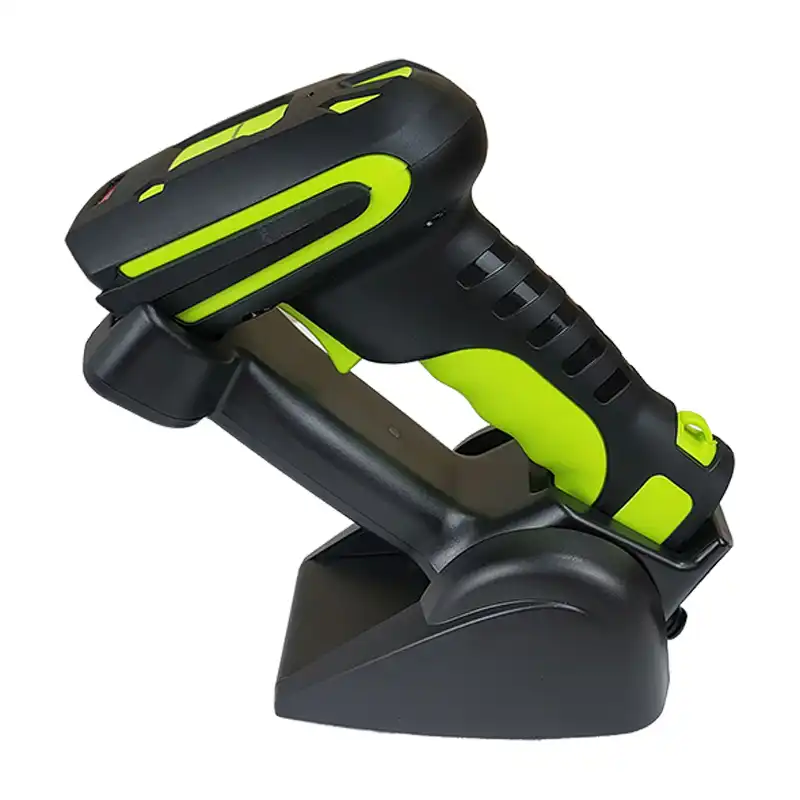

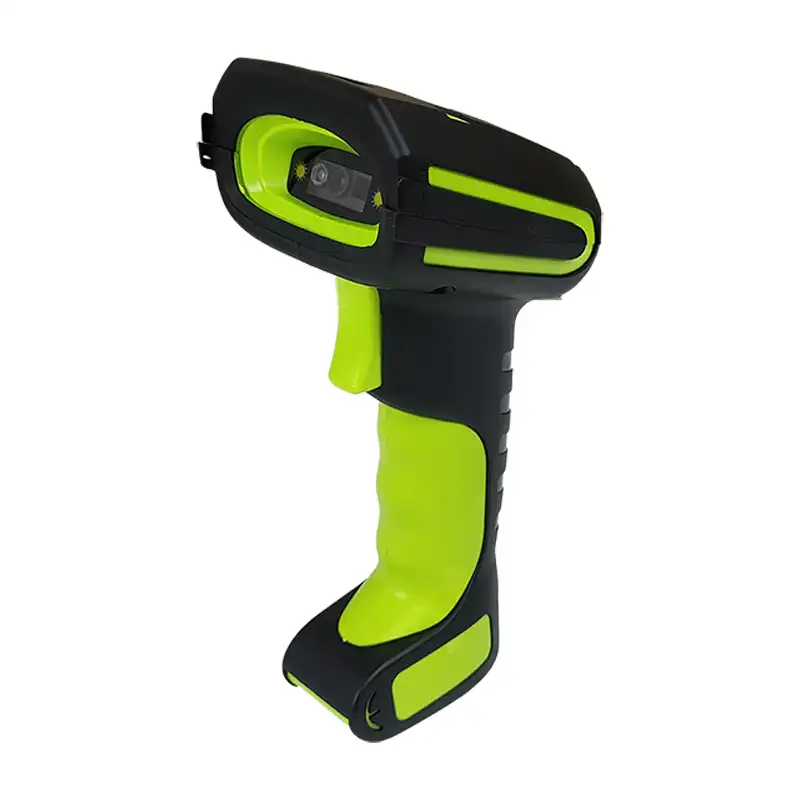

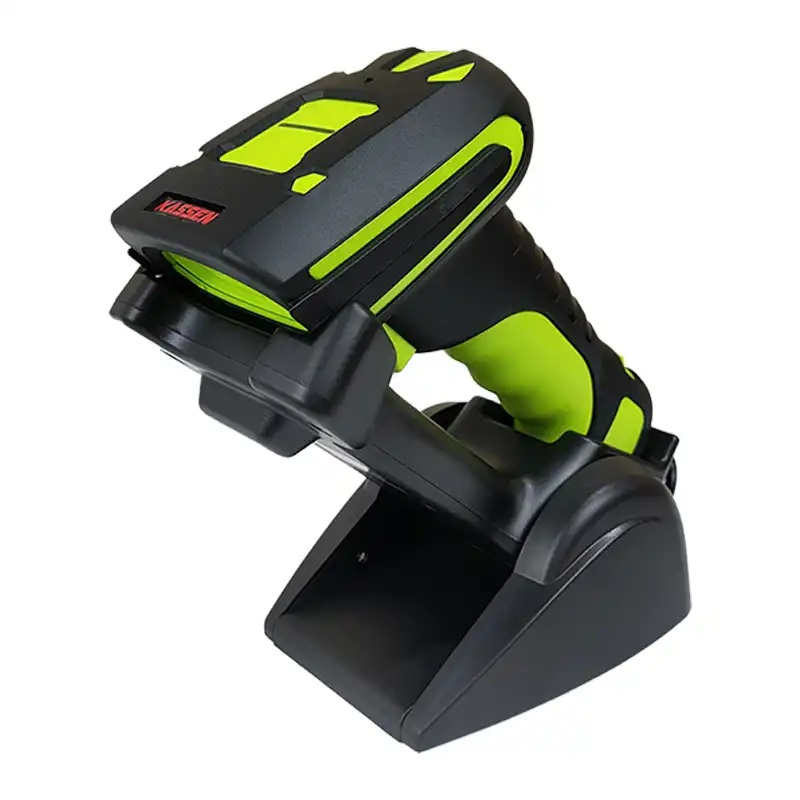

Barcode Scanner Kassen RF-2800 is a wireless (wireless) barcode scanner with radio frequency technology and has a wireless range of up to 800 meters. Equipped with a large battery capacity of up to 1800 mAh and is able to read 1D & 2D barcode codes.

Main Features

  • Can read 1D & 2D barcodes
  • USB & Bluetooth support
  • Wireless range up to 800 meters
  • Support Windows, Android
  • Battery capacity up to 1800 mAh
  • Support Storage Mode
Try On The Touch


TypeCMOS, MHZ Cordless
Resolution1280 x 800 pixel
Print Contrast≥ 25%
Reading Preciseness4mil
Battery≥ 4mil
Operation System443 MHZ + Bluetooth
Reading DepthCode 39 - 30mm-135mm(5 mil)
EAN13 - 30mm-135mm(5 mil)
QR Code - 30mm-135mm(5 mil)
Data Matrix - 30mm-135mm(5 mil)
PDF417 - 30mm-135mm(5 mil)
Barcode Type1D : Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25,
Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
2D : PDF417 / QR code / Data Matrix / Aztec / Maxicode
Ambient Light0 ~ 100.000 LUX
Communication ModeSPP, HID ,BLE
ChargingNo charging port (wireless charging)
433 MHZ Wireless400-800M
Battery3.7V 1800mAh Li-ion
Current Consumption20mA
Operating Current220mA
Input Voltage4.7 - 5.3VDC
Input Current500mA-1100mA
Output Voltage5.0VDC
Receive Voltage5.0VDC
Receipt Current100mA-700mA
Conversion Eciency50%-70%
Charging Tempt35-55°C
Memory16 MB
Temperature in operation-20 to 50°C
Temperature in storage-40 to 70°C
Humidity in operation5 - 95% (non-condensing)
Humidity in storage5 - 95% (non-condensing)
Dimensions (WxHxD)Scanner:165mm x 60mm x 84mm
Weight409g (include battery)
