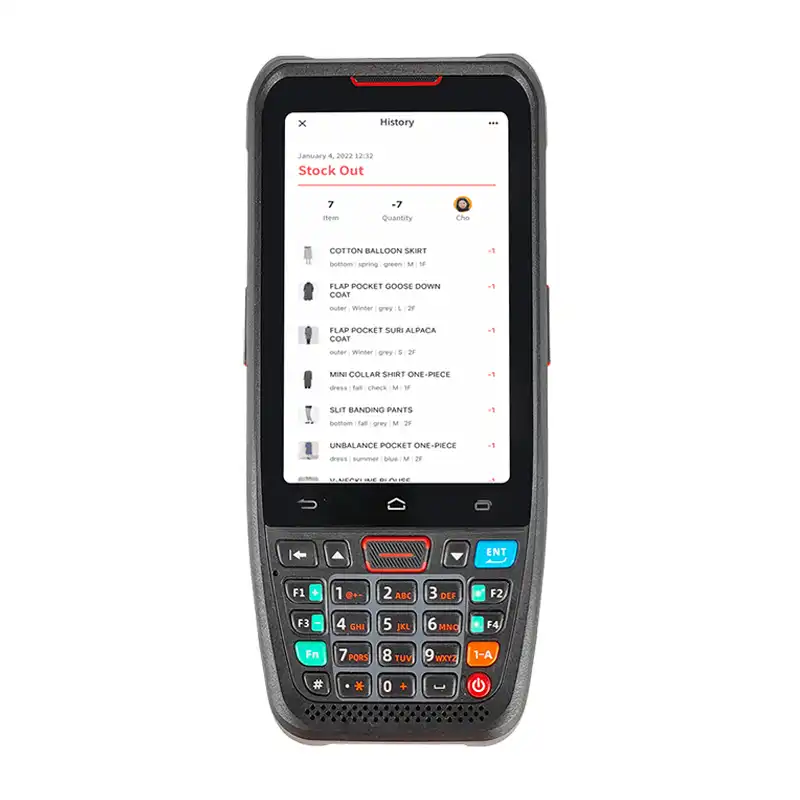

Portable Data Terminal
A40
Qualcomm quad core 2.0 GHz, dual band WiFi and 4G all Netcom, with faster operation speed,
smooth operation, higher speed and stable data transmission.
widely used in warehouse management, express logistics, factories, parking fees,
supermarket management
Main Features
- 4.0 “color display with resolution 480×800
- 1D/2D barcode with quick identification
- Android 10 customized system with high performance Qualcomm Octa-Core CPU
Try On The Touch
Spesifications
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor |
| RAM+ROM | 4GB + 64GB |
| Expand Memory | Micro SD (TF) Supports up to 128GB |
| System | Android 13 |
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G : GSM (850/900/1800/1900MHz) 3G : WCDMA (850/900/1900/2100MHz) 4G : FDD : B1/B3/B4/B7/B8/B12/B20 TDD : B38/B39/B40/B41 |
| Bluetooth | Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS |
| GPS | Transmission distance 5-10 meters Support GPS, Galileo, GLONASS and Beidou |
| Dimension | 162mm x 71.5mm x 17 (The thinnest part)mm |
| Weight | < 300g |
| Display | 4.0 inch TN color display with resolution 480*800 |
| TP | Support single touch |
| Battery Capacity | Rechargeable polymer battery (3.8V 4500mAh) removable Stanby time > 350 hours Working time > 12 hours Charging time < 5 hours, using standard power adapter and data cable |
| Expansion Card slot | Nano SIM card 2x, TF card 1x |
| Communication Interface | Type-C USB 1x, POGO Pin 1x, Micro USB 2.0, supporting OTG function |
| Audio | Speaker (Mono), Microphone, Earpiece |
| Keypad | 25 soft and hard rubber buttons, left button 1x, right button 1x |
| Sensor | Gravity sensor, light sensor, distance sensor, vibration motor |
| 2D Image Scanner | Honeywell N3603 |
| 1DSymbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPCE, Codaber, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar, HIBC |
| 2D Symbologies | PDF417,MicroPDF417,GS1 Composite,Aztec Code, Data Matrix,QR Code,Micro QR Code,MaxiCode, Hanxin Code |
| Rear Camera | 800W pixel HD camera, Support auto focus, flash anti-shake, macro shooting |
| Front Camera | 500W pixel color camera |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm - 5cm |
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese |
| Operating Temperature | -20 ̊C ~ 55 ̊C |
| Storage Temperature | -40 ̊C ~ 70 ̊C |
| Environment Humidity | 5% RH ~ 95% RH (no condensation) |
| Drop Specification | In the operating temperature range, 6 sides can with stand 1.2m height 30 impacts on concrete floor |
| Rolling Test | 500 x 0.5m rolling for 6 sides |
| Protection Sealing | IP66 |
| Standard | Adapter, Data cable, Protective film, Instruction manual |
