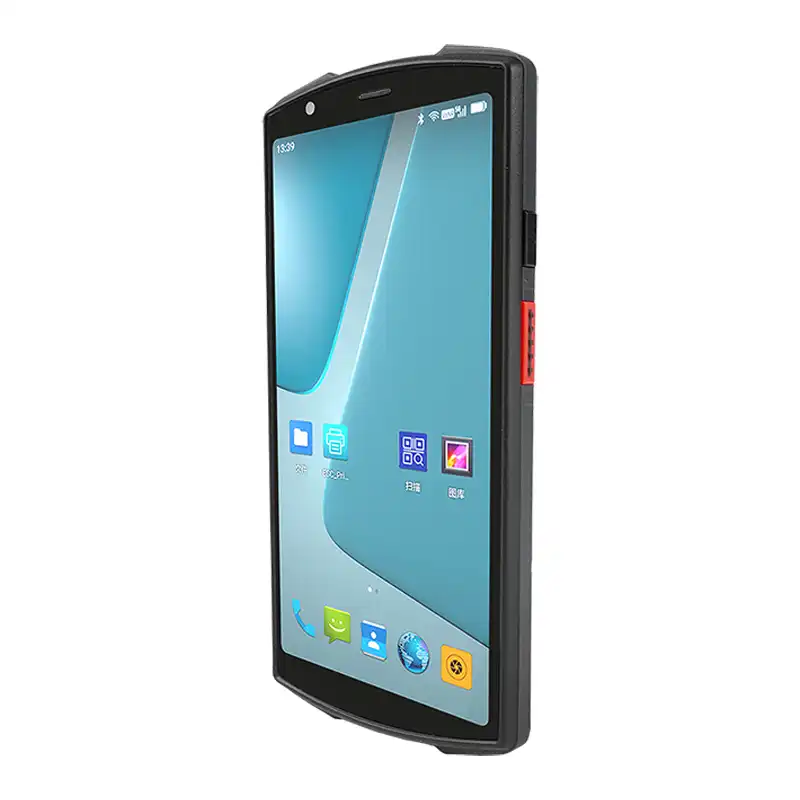

Portable Data Terminal

A60

dual band WiFi and 4G all Netcom, with faster operation speed,
smooth operation, higher speed and stable data transmission.
widely used in warehouse management, express logistics, factories, parking fees,
supermarket management

Main Features

  • 5.99 inches IPS color display,resolution 1080*2160
  • 1D/2D barcode with quick identification
  • Android 10 customized system with high performance Qualcomm Octa-Core CPU
Try On The Touch

Spesifications

CPUCortex-A76/A53 Octa-core 64-bit
2.0GHz high-performance processor
RAM4GB
ROM64GB
ROM64GB
SystemAndroid 10.0
WLANDual frequency 2.4GHz/5GHz,
support IEEE 802 a/b/g/n/ac protocol
WWAN2G: GSM (Mobile/Unicom), CDMA (Telecom)
3G: WCDMA (Unicom), CDMA2000 (Telecom),
TD-SCDMA (Mobile)
4G: TD-LTE (mobile), FDD-LTE (unicom,
telecommunications)
5G: Mobile 5G, China Unicom 5G, Telecom 5G
BluetoothSupport BT 5.0

Transmission distance 5-10 meters
GNSSSupport Gps, Galileo, Glonass, Beidou
Dimensions164.5mm×79.4mm×12.3mm
Weight<265g

(Depends on device function configuration)
Display5.99 inches IPS color display,resolution 1080*2160
TPSupports multi-touch
Supported gloves and wet hands
Battery capacity(3.8V4200MAh)
Expansion
Card slot
Nano SIM card
Communication
interface
Type-C USB x 1, OTG
AudioSpeaker (mono), Microphone x 2 , Earpiece,

Vibration motor
KeypadPower button, Volume +/- button,Scan button × 2

Handle scan button ×1
SensorsGravity sensor, Light sensor, Proximity sensor,

Gyroscope, electronic compass
2D Imager scannerHoneywell N6703
2D
Symbologies
PDF417,Micro PDF417,GS1 Composite,Aztec
Code,Data Matrix,QR Code,Micro QR Code,
Maxicode,Hanxin Code,etc.
Rear camera16MP HD camera,Support auto focus,
2MP auxiliary camera
Flash, Anti-shake, Macro shooting
Front camera5MP color camera
FeaturesSupport fingerprint unlocking and taking pictures
Frequency13.56MHz
ProtocolSupport ISO14443A/B, 15693 agreement
Distance2cm-5cm
InputEnglish, Pinyin, Five strokes, Handwriting input, Support soft keypad
LanguageChinese, English, Korean, Japanese,

Malaysian,etc.
Operating
temperature
-20°C - 55°C
Storage
temperature
-40°C - 70°C
Environment
humidity
5%RH--95%RH(no condensation)
Drop specificationtemperature range, 6 sides can withstand a height
of 1.2 meters
30 impacts of falling to the marble floor
SealingIP66
StandardAdapter, Data cable, Protective film,

Instruction manual
