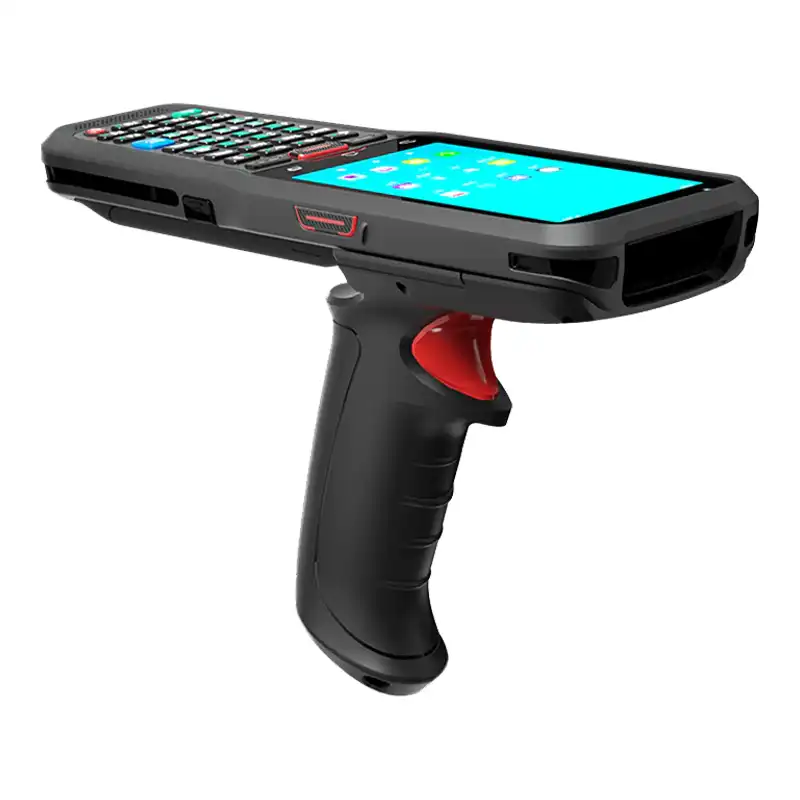

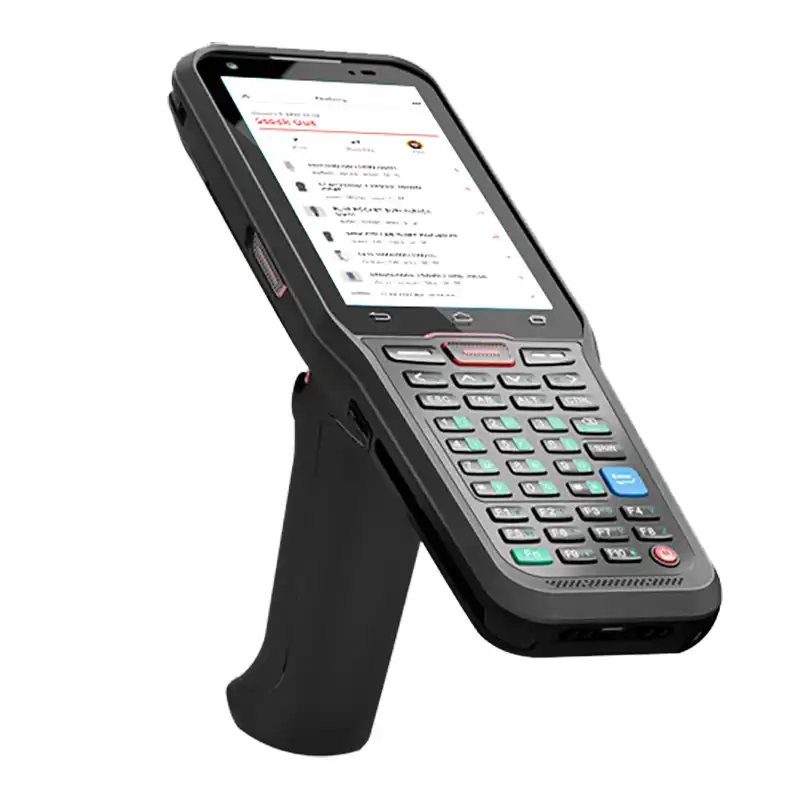

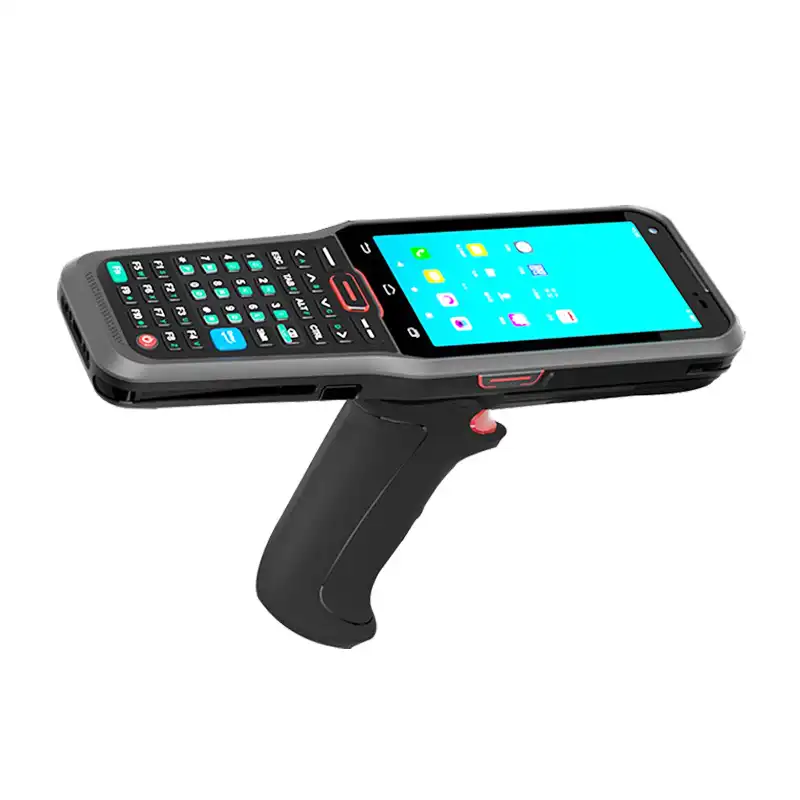

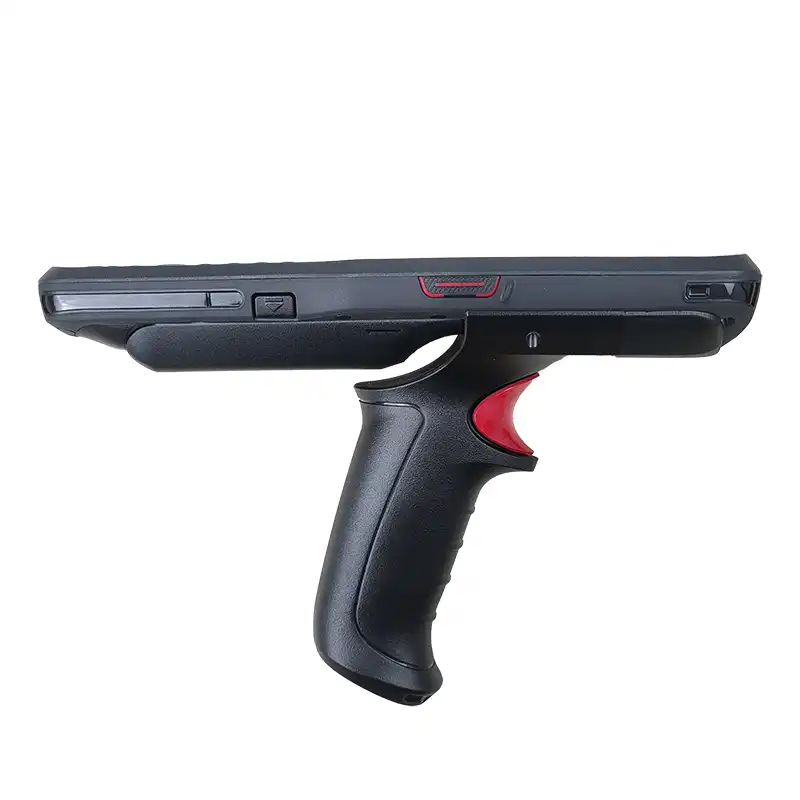

Portable Data Terminal
A70
Qualcomm quad core 2.0 GHz, dual band WiFi and 4G all Netcom, with faster operation speed,
smooth operation, higher speed and stable data transmission.
widely used in warehouse management, express logistics, factories, parking fees,
supermarket management
Main Features
- 4.0 “color display with resolution 480×800
- 1D/2D barcode with quick identification
- Android 10 customized system with high performance Qualcomm Octa-Core CPU
Try On The Touch
Spesifications
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor |
| RAM+ROM | 4GB + 64GB |
| Expand Memory | Micro SD (TF) Supports up to 128GB |
| System | Android 10 |
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G : GSM (850/900/1800/1900MHz) 3G : WCDMA (850/900/1900/2100MHz) 4G : FDD : B1/B3/B4/B7/B8/B12/B20 TDD : B38/B39/B40/B41 |
| Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
| GPS | Support GPS, Galileo, GLONASS and Beidou |
| Dimension | 201.8mm x 72mm x 140mm (Including the handle) |
| Weight | < 300g (Depends on device function configuration) |
| Display | 4.0 inch color display with resolution 480*800 |
| TP | Support multi-touch |
| Battery Capacity | Rechargeable polymer battery (7.6V 3750mAh) removable Stanby time > 350 hours Working time > 12 hours Charging time < 3 hours, using standard power adapter and data cable |
| Expansion Card slot | Nano SIM card 2x, TF card 1x |
| Communication Interface | Type-C 2.0 USB 1x, Supporting OTG function, POGO Pin 1x |
| Audio | Speaker (Mono), Microphone, Receiver |
| Keypad | 38 soft and hard rubber buttons, left button 1x, right button 1x |
| Sensor | Gravity sensor, light sensor, distance sensor, vibration motor |
| 2D Image Scanner | Honeywell N5703 |
| 1DSymbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPCE, Codaber, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar, HIBC, etc |
| 2D Symbologies | PDF417, MicroPDF417, GS1 Composite,Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc |
| Rear Camera | 800W pixel HD camera, Support auto focus, flash anti-shake, macro shooting |
| Front Camera | 500W pixel color camera |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm - 5cm |
| Distance | 0 ~ 13m |
| Reading speed | > 200 tags per second (circular polarization) |
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc |
| Operating Temperature | -20 ̊C ~ 55 ̊C |
| Storage Temperature | -40 ̊C ~ 70 ̊C |
| Environment Humidity | 5% RH ~ 95% RH (no condensation) |
| Drop Specification | 6 sides supports 1.2m drops on the marble within the operating temperature |
| Rolling Test | 0.5m rolling for 6 sides, can still work steadily |
| Protection Sealing | IP66 |
| Standard | Adapter, Data cable, Protective film, Instruction manual |
