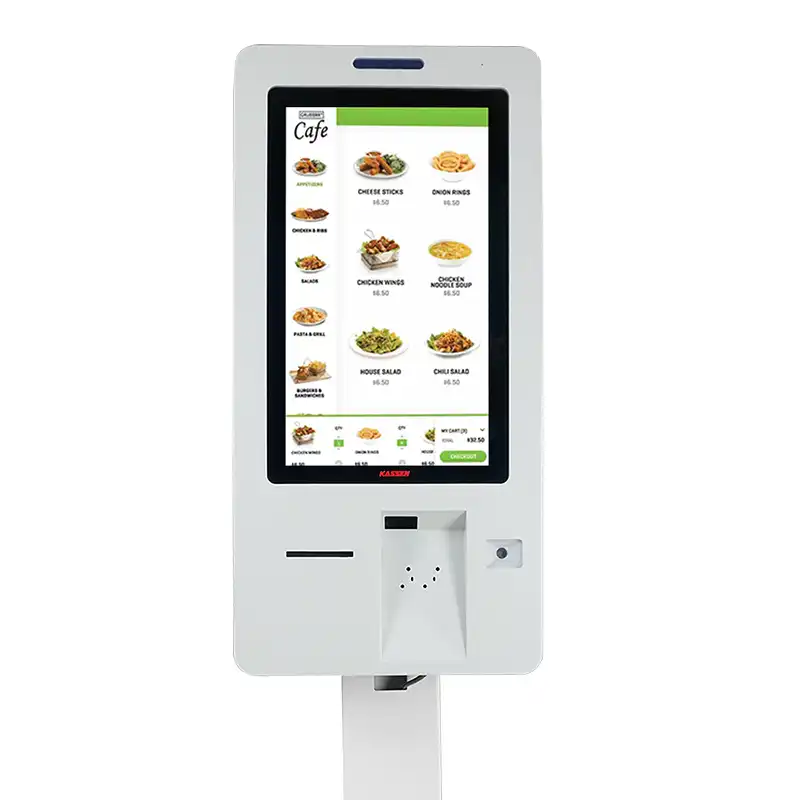

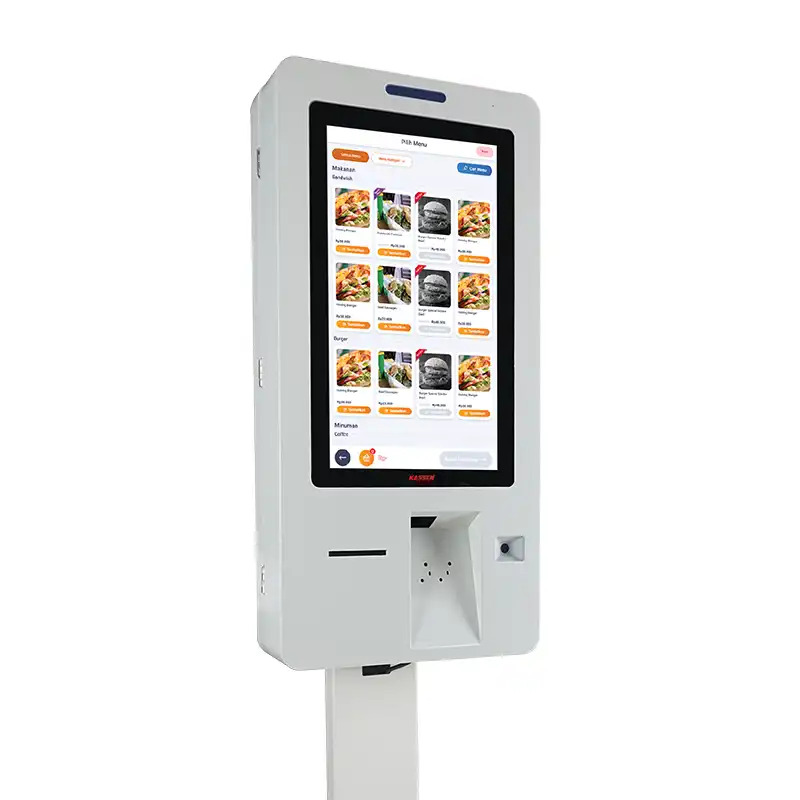

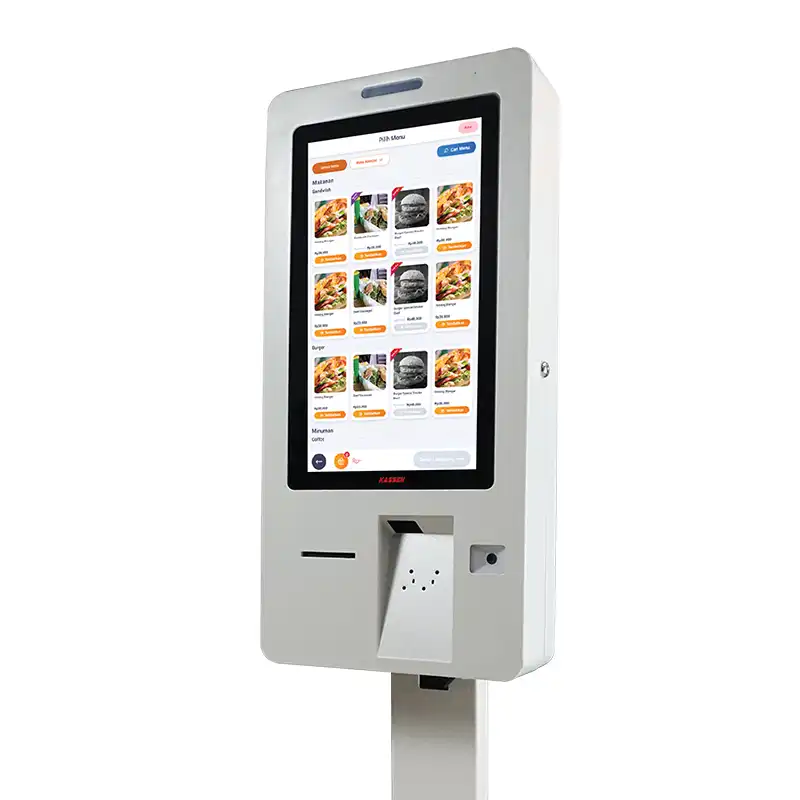

Self Service Order Payment


The highly configurable Kassen Kiosk is easily intergrated with EMV device, bill acceptor, barcode scanner, NFC, Facial Camera or speaker. The pedestal is designed to offer specific functionalities that customer request.

Main Features

  • Ordering Kiosk/Queue Kiosk/Information Kiosk
  • Integrated thermal receipt printer, barcode scanner
  • Capacitive touchscreen
  • Various interface and anti-theft locks
  • Support mobile phone scan code payment
  • The body of Kiosk using mild steel and baking process.
Try On The Touch


ProcessorIntel Core i3
Optional Intel Core i5, i7
System Memory4GB
StoragemSATA SSD 64GB
Power Compsumtion21.5": 60 watt, 32": 75 watt
OS SupportWindows 10
Interface2*USB , 1*Ethernet
AudioInternal 3W speaker
Built-in PrinterThermal Printer Auto Cutter 80mm
ScannerStandard 2D barcode scanner for payment, 640 x 480 pixel
LCD21.5” / 32” full HD LCD
Resolution1920 x 1080
Touch screenTrue flat PCAP touch with multi touch technology
Built-in Options
BT ModuleBluetooth 4.0
CameraOption 5.0MP wide angle camera
Scanner for Goods2D scanner imager
MSROption, Comply with ISO 7811, Support 1 & 2 & 3 Track
Fingerprint SensorOption optical type
NFC ReaderSupport ISO / IEC 1443-A&B (MIFARE), JIS x 63194 (Felica), ISO /
IEC 15693, NFC Protocol - tag read / write (ISO / IEC-18902)
