All in One Smart Handheld POS
XA02 Pro
Kassen XA-02 Pro is the cutting-edge secure electronic terminal power by safe-Android 10 operation system. It comes with a 6 inch high definition colorfull display, industrial level thermal printer and flexible configuration for various barcode scanner scannarios.
A wide range change of advanced connectivity options are supported for global 2G/3G/4G network, as well as in built NFC contactless, BT 4.2 and WiFi.
Main Features
- 6’’ HD screen with 1440*720 resolution
- 1D/2D barcode with quick identification

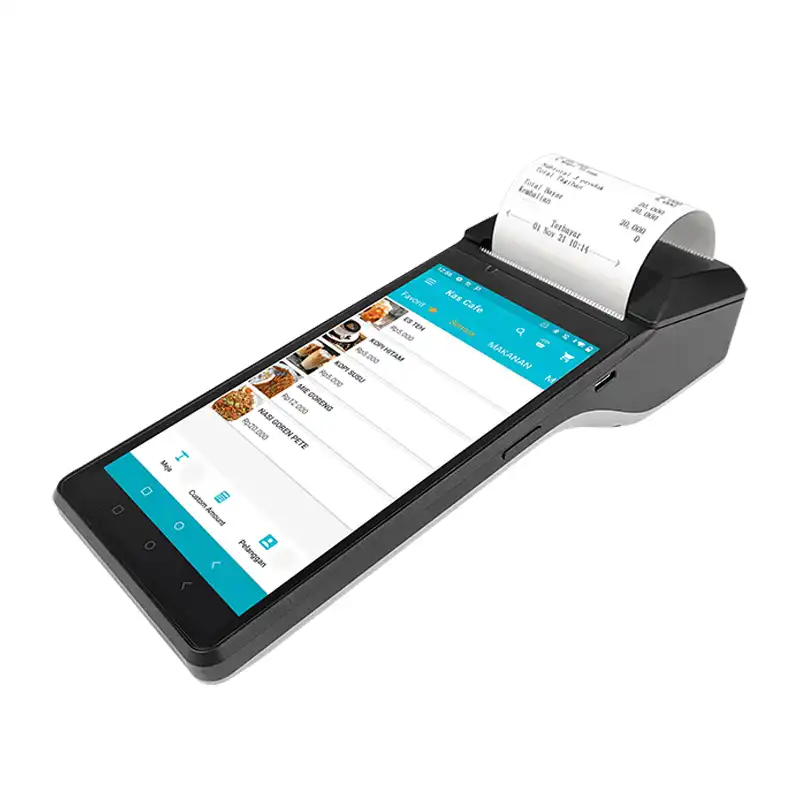

- Built-in high speed thermal printer
- Supports multi-language printing
- Ultra-thin, packed with high technologies
- Android 10 customized system with high performance Qualcomm Octa-Core CPU
Try On The Touch
Spesifications
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor |
| RAM | 2GB |
| ROM | 16GB |
| Expand memory | Micro SD(TF) Supports up to 128GB |
| System | Android 10.0 |
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G:GSM(850/900/1800/1900MHz) 3G:WCDMA(850/900/1900/2100MHz) 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
| Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
| GNSS | Support Gps, Galileo, Glonass, Beidou |
| Dimensions | 201.8mm×72mm×140mm(Including the handle) |
| Weight | <750g (Depends on device function configuration) |
| Display | 4.0 "color display with resolution 480×800 |
| TP | Support multi-touch |
| Battery capacity | (7.6V 3750mah) |
| Expansion Card slot | Nano SIM card x 2, TF card × 1 |
| Communication interface | Type-C 2.0 USB x 1, supporting OTG function POGO Pin x 1 |
| Audio | Speaker (mono), Microphone, Receiver |
| Keypad | 38 soft and hard rubber buttons, left button x1, right button x1 |
| Sensor | Gravity sensor, light sensor, distance sensor, vibration motor |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar,Interleaved 2 of 5,China post 25, ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar, HIBC,etc. |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite, Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code,etc. |
| Rear camera | 800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro shooting |
| Front camera | 500W pixel color camera |
| NFC : | |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm-5cm |
| Frequency | 13.56MHz |
| UHF (Optional) : | |
| Distance | 0-13m |
| Reading speed | >200 tags per second (circular polarization) |
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc. |
| Operating temperature | -20°C - 55°C |
| Storage temperature | -40°C - 70°C |
| Environment humidity | 5%RH--95%RH(no condensation) |
| Drop specification | 6 sides supports 1.2 meters drops on the marble within the operating temperature |
| Rolling test | 0.5m rolling for 6 sides, can still work steadily |
| Sealing | IP66 |
| Standard | Adapter, Data cable, Protective film, Instruction manual |
