Thermal Receipt Printer

KP 3250

Provides operational convenience in printing receipts quickly and accurately automatically when orders are processed, and the order processing process becomes more efficient.

Main Features

  • With warning lights and high power alarm
  • Standard waterproof cover all-metal mechanism
  • Professional in kitchen printing
  • Patent design of unique vertical double auto cutter prevents water and dust
  • Unique error reprint technology
  • 250mm/s high printing speed
  • Paper taken sensor, paper near end detector, paper out detector, head up detector
  • Equiped with top cover to prevent demaging from splash water and oil
Brochure
Driver For Windows
Tools
Try On The Touch

Spesifications

ModelKP3250
Printing MethodDirect Thermal Line Printing
Resolution203 dpi (8 dots/mm)
Print SpeedMax. 250mm/s
Printing WidthMax. 72mm

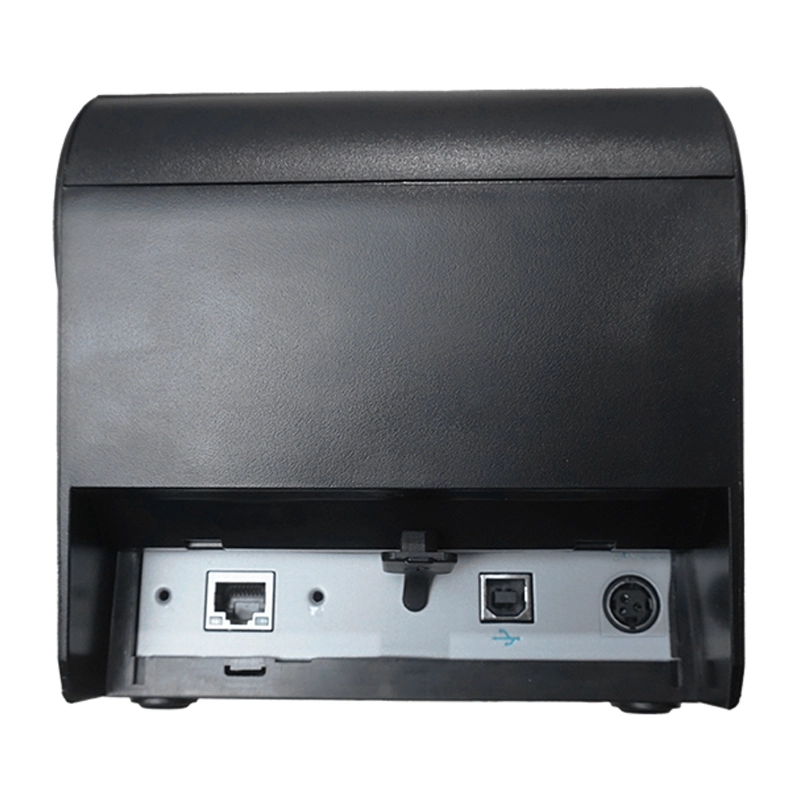

InterfaceUSB Type B , Ethernet
Page ModeSupport
RAM & FlashRAM 2MB , Flash 4MB
FontsAlphanumeric; Simplied Chinese, Traditional Chinese; 45 International Character Sets
Barcode1D Barcode : UPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93
QR Code : PDF417, QR Code
GraphicsSupport bitmap printing with dierent density and user dened bitmap printing.
(Max size of each bitmap is 40KB, the total size of bitmap is 256KB)
SensorsPaper out Detector, Head up Detector, Paper Taken Sensor
LED IndicatorPower : Green
Paper : Red
Error : Red
Power SupplyInput : AC 100V ~ 240V, 50/60Hz
Output : DC 24V, 2.5A
Paper TypeThermal Receipt Printer
Paper Width80mm
Paper Thickness0.056 ~ 0.13mm
Roll Paper DiameterMax. Φ83mm (O.D.)
Paper LoadEasy paper loading
Paper CutPartial cut
EnvironmentOperating : 0°C ~ 45°C, 20% ~ 85% R.H , Storage : -40°C ~ 60°C, 5% ~ 95% R.H
Dimensions201.4(L)×152.2(W)×147.7(H) mm
Weight1.8 kg
TPH Life30km
Cutter2 million cuts
Motor Life360.000 hrs
DriverWindows XP/ 7/ 8/ 8.1/ 10/ POSReady/Linux/ OPOS/ JavaPOS
SDKWin CE, Windows Mobile, Android
